Are IC package dimensions standard?

Time:2019-06-03 14:34:06 Click:

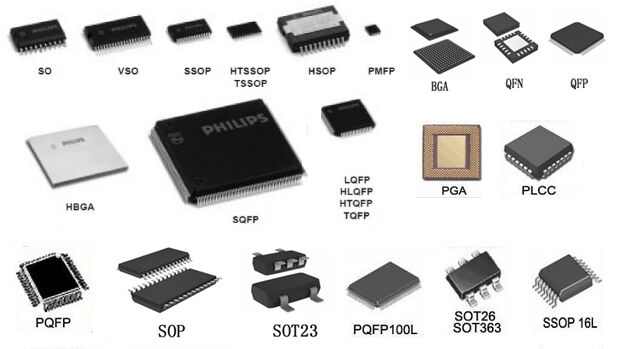

Yep! All IC package dimensions are standard, such as DFN, QFN, QFP, BGA, SOP and so on, which comply with the Standards of JEDEC ( Joint Electron Device Engineering Council, USA.)



PS:

DFN: Dual flat-pack no lead

QFN: Quad flat no-leads package

QFP: Quad flat package

BGA: Ball Grid Array

SOP: Small-outline package



List of integrated circuit packaging types - Wikipedia
