How can I choose the aluminum plate for the PCB printed circuit board?

Time:2019-04-13 14:47:52 Click:

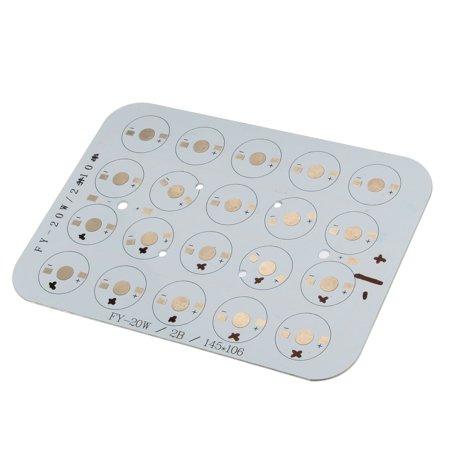

Aluminum plate is a metal base copper clad laminate with the following characteristics such as terrific thermal conductivity, machining property and gas-electric insulation performance.



Generally, there are three standands to gauge appropriately aluminum plate: Thermal conductivity, thermal resistance value and withstanding voltage.Therefore, when it comes to choosing the aluminute plate for the PCB where the above three standards is a major consideration.



Here are some parameters for your reference:



Board thickness:0.2-6.0 mm;

Copper foil thickness: 0.5–6.0 oz;

Thermal conductivity: 1.0–8.0;

Withstanding voltageL: 500V, 250V, etc.



Thermal resistance value:

Common aluminum plate: >1;

High thermal conductivity aluminum plate: <0.5 or <0.1 or less



In a nutshell, high thermal conductivity and low thermal resistance are the crucial factors when you are looking for suitable aluminum plate for the PCB.
