CNC Busbar Processing Machine Turnkey PCB Layout, PCB Fabrication & Assembly

Time:2020-09-24 16:43:27 Click:







Supplier: Shenzhen Grande Electronics
Application: CNC Busbar Processing Machine Turnkey PCB Layout, PCB Fabrication & Assembly

Software: PADS
Layers:8

Features:
1, Various machine interfaced.  High Speed Sewing Machine PCB Layout | Printed Circuit Board Manufacturer
2, Equal-length for high speed traces.
Lead time: 10-12 days



Description

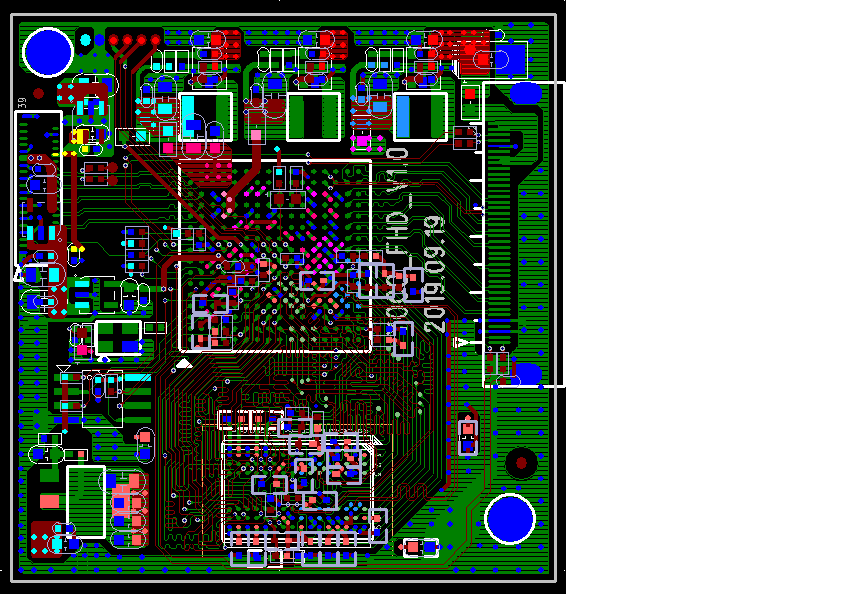

PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 8
Size: 156*174*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via:8mil
