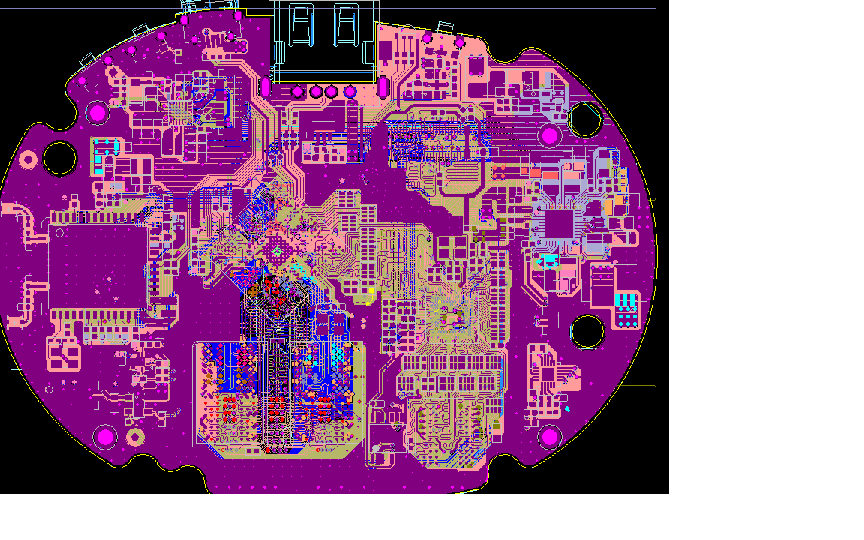

Tile Making Machinery Custom Printed Circuit Board (PCB) Layout- 58pcba

Time:2020-09-24 16:36:25 Click:



Supplier: Shenzhen Grande Electronics
Application: Tile Making Machinery Custom Printed Circuit Board (PCB) Layout- 58pcba

Software: PADS
Layers: 4

1, Various machine interfaced.  High Speed Sewing Machine PCB Layout | Printed Circuit Board Manufacturer
2, Equal-length for high speed traces.
Lead time: 8-10 days


PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 6
Size: 152*171*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via:8mil
