Supplier: Shenzhen Grande Electronics

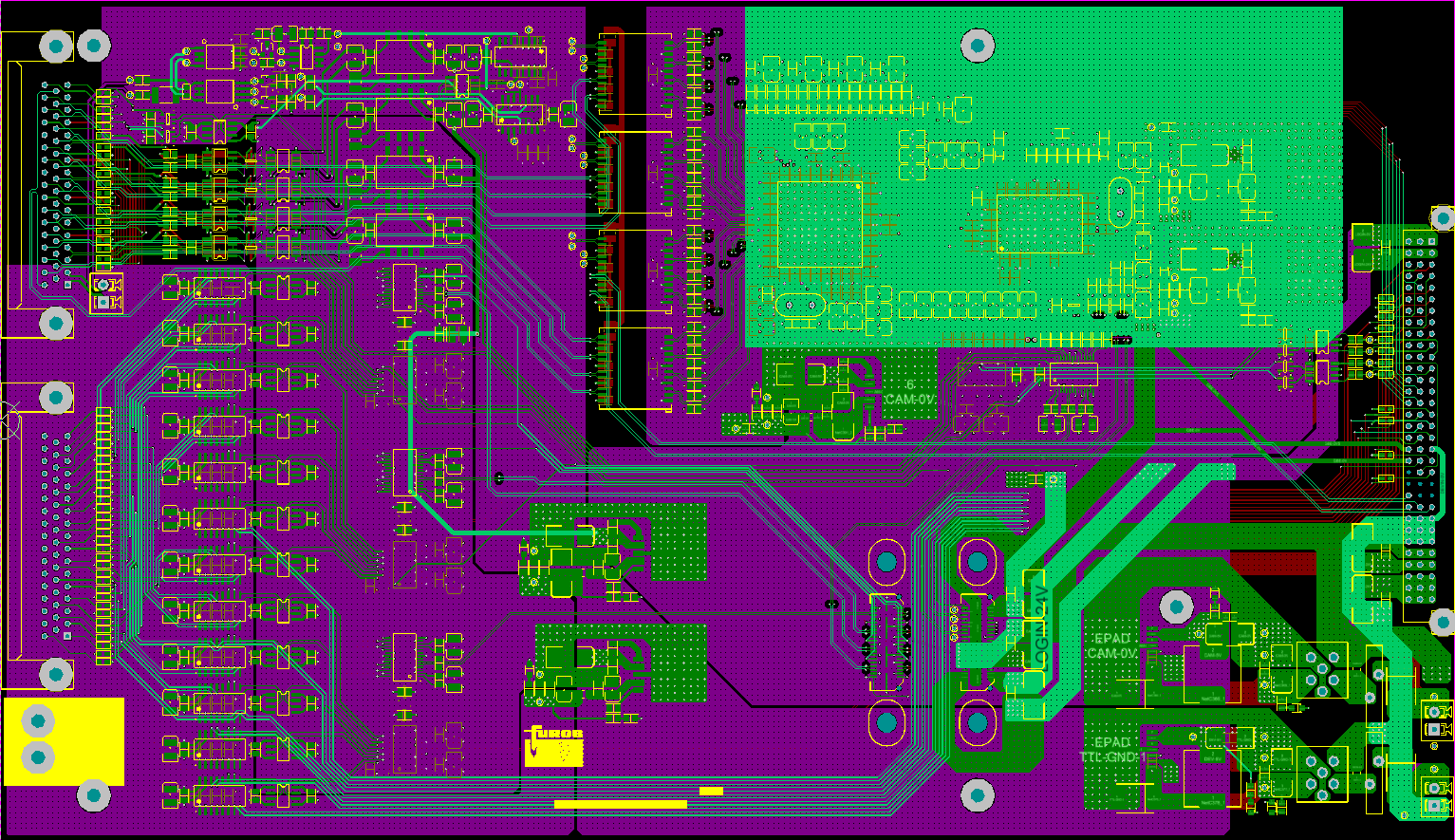

Application: Industrial Robot Control Board PCB Layout | Grande Electronics Manufacturer

Software: PADS
Layers:4
Features:
1, Various machine interfaced.
2, Equal-length for high speed traces.
Lead time: 10-12 days

【Description】
PCB layout Features：
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication：
Layers: 4
Size: 256*248*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 2oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via：8mil
