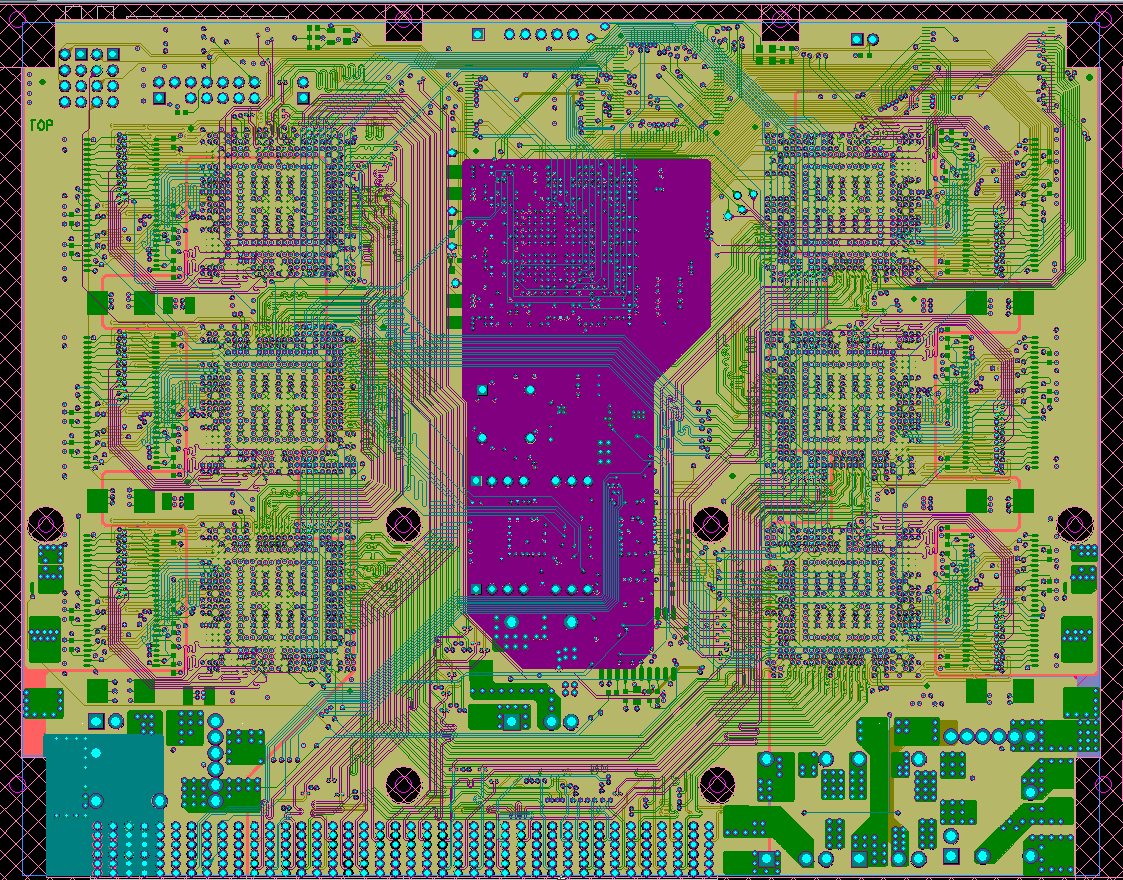

Smart Energy Meter Control Board PCB Layout- PCB Assembly

Time:2020-08-10 09:33:27 Click:



Supplier: Shenzhen Grande Electronics
Application: Smart Energy Meter Control Board PCB Layout- PCB Assembly Solutions PCB To PCBA
Software: PADS
Layers:4
Features:
1, Various machine interfaced.
2, Equal-length for high speed traces.
Lead time: 8-10 days



Description
PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 4
Size: 192*168*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 2oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via:8mil
