Which PCB design software is most used?

Time:2019-07-29 18:33:15 Click:

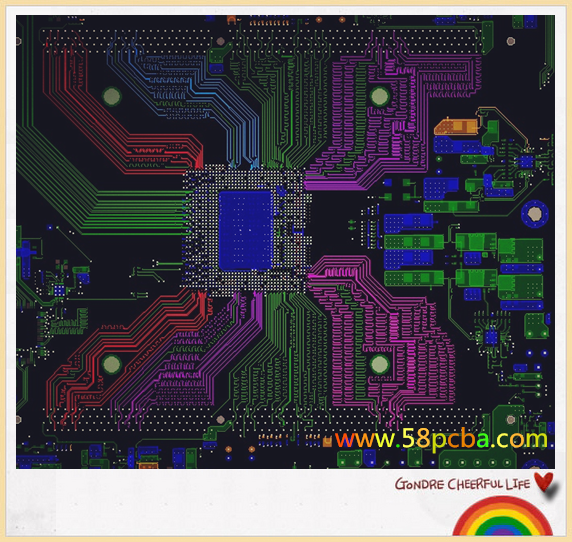

The most used PCB design softwares: Allegro, PADS, Altium Designer (high version of Protel).



Altium Designer is more suitable for simple and mid-end boards, and which is easy to get started;



While Allegro and PADS is mainly used for designing high-end and complex boards. BTW, Allegro is pretty flexible than PADS so that it is more advantageous to make high-density and huge boards.



Besides, other PCB Design softwares like Orcad, PCAD and Egle are less used.
