What is the QFN package in a microcontroller in electronics?

Time:2019-04-11 16:34:05 Click:

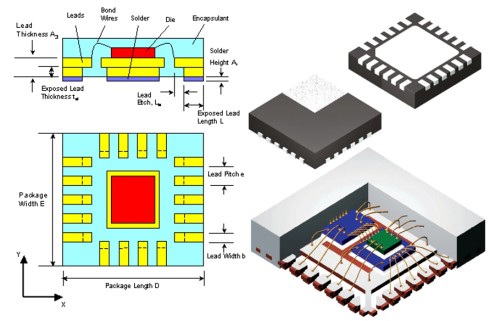

QFN refers to Quad Flat No-lead Package, which is a new SMT package technology with sealing material of plastic whose pads is a type of small size and volume;



A couple of characteristics:



  • No-lead Package
  • Square or Rectangle
  • A huge bare pads under the centre of bottom whose function is heat conduction
  • Conductive pads over the huge bare pads which is to realize electrical connection
