What're the pros and cons of blind vias versus through-hole in PCB layout design

Time:2018-11-22 18:56:55 Click:

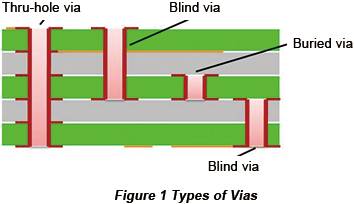

Blind vias VS Through-hole









Blind vias



Pros:

1)Higher utilization rate of plane space;

2)Small interference between signals;

3) High signal quality requirements can be satisfied.



Cons:

1)Higher requirement of process technology;

2)Longer production cycle;

3)Higher production cost.



Through-hole



Pros:

Mainly lower production cost.



Cons:

1)Lower utilization rate of plane space;

2)Easily interfere with / by other signals.
