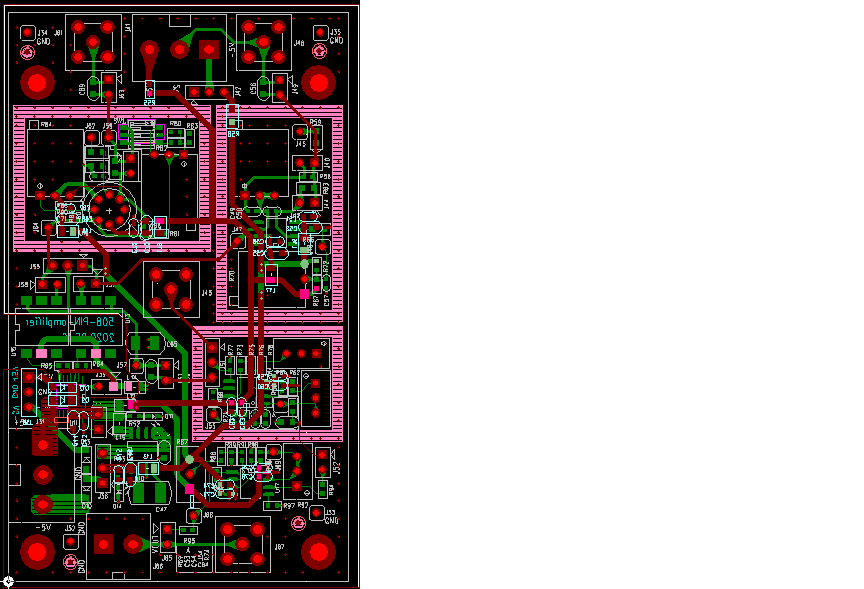

Ferrite Core Transformer Circuit Board PCB Design, Layout, Prototype & Asse

Time:2020-10-10 18:26:04 Click:





Supplier: Shenzhen Grande Electronics
Application: Ferrite Core Transformer Circuit Board PCB  Design, Layout, Prototype & Assembly

Software: PADS
Layers:6

Features:
1, Various machine interfaced.  High Speed Sewing Machine PCB Layout | Printed Circuit Board Manufacturer
2, Equal-length for high speed traces.
Lead time: 8-10 days



Description
PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 6
Size: 195*204*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via:8mil
