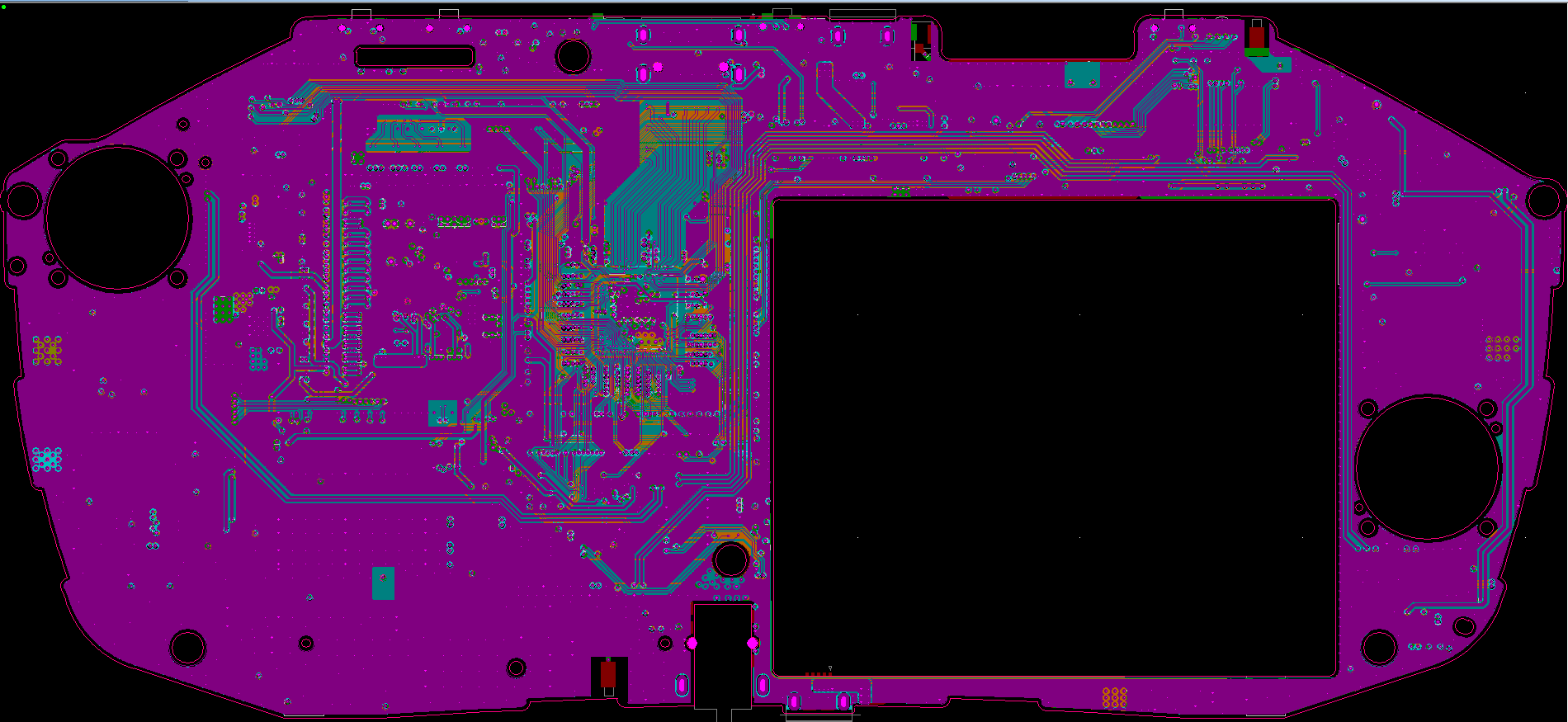

Wireless Baby Monitors Circuit Board PCB Layout | Grande Electronics

Time:2020-09-15 19:55:46 Click:





Supplier: Shenzhen Grande Electronics
Application: Wireless Baby Monitors Circuit Board PCB Layout | Grande Electronics

Software: PADS
Layers:4

Features:
1, Various machine interfaced.  High Speed Sewing Machine PCB Layout | Printed Circuit Board Manufacturer
2, Equal-length for high speed traces.
Lead time: 7-8 days



Description
PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 4
Size: 145*162*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via:8mil
