Supplier: Shenzhen Grande Electronics
Application: PCB Circuit Board Layout and Prototype For Police and Military Devices

Software: PADS
Layers: 8

Features:
1, Various machine interfaced.  High Speed Sewing Machine PCB Layout | Printed Circuit Board Manufacturer
2, Equal-length for high speed traces.
Lead time: 10-12 days

【Description】

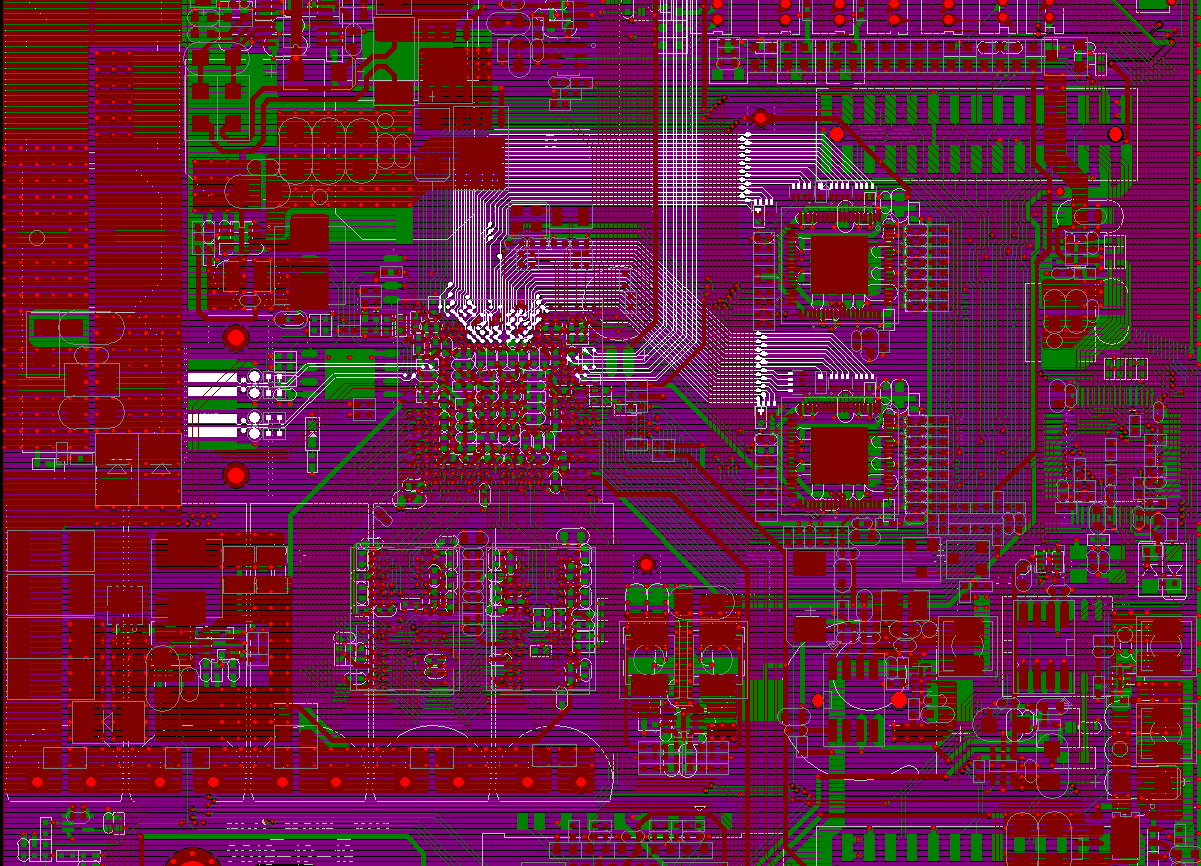

PCB layout Features：
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication：
Layers: 4
Size: 254*226*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via：8mil
